1992 Chevy S10 Mega Truck RGB Rock Lights & Switch Panel
Built by Michael S. · @Og_perkahladuh

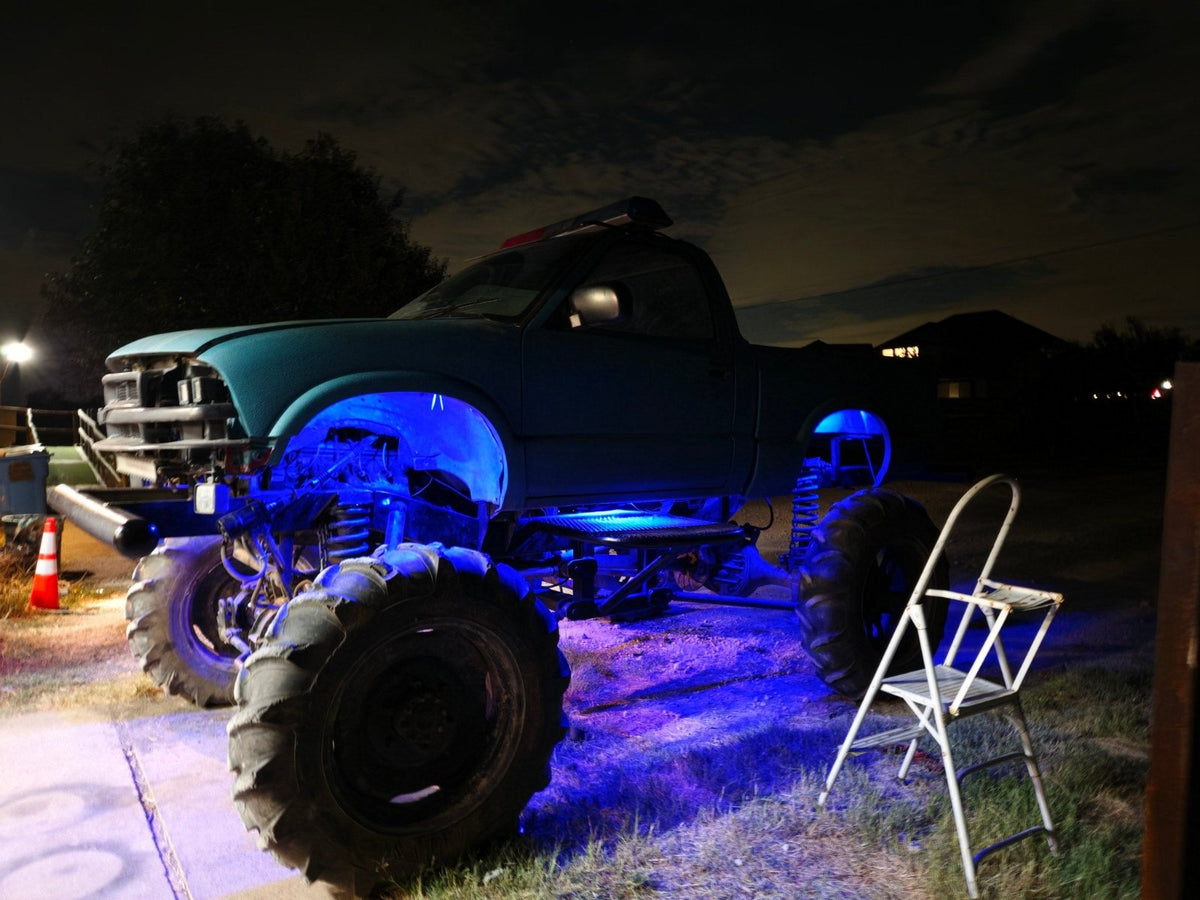

S10 mega truck on big tires lit up with RGB rock lights.
Get this exact setup
Everything on this build. Uncheck anything you don’t need, set quantities, and add it all in one go.
Complete the install (optional)
About this build
Michael S. built his 1992 Chevy S10 into a mega truck on big tires, and it got the lighting to match: a 24-piece kit of High-Intensity RGB Rock Lights. Kits of 24 and up are made for show builds, and on a truck sitting this high, the extra lights fill the open space under the frame and around the tires with color.
Each light runs three 16W Cree LEDs for 1,600 lumens in an IP69 waterproof, shockproof aluminum housing, with color control from the Bluetooth app. Michael also added the Wireless Switch Panel, a 6-gang system that runs up to six accessories without drilling holes in the dash, so there is room to grow. For S10 rock lights on a show-level build, this is the setup. Every part is in the parts list above.
Chevy S10 Mega Truck lighting FAQ
How many rock lights does a lifted Chevy S10 need?
A 4 to 8 light kit covers the wheel wells on most trucks, 12 to 16 lights give a full underbody glow, and 24 to 40 lights are for show builds and big rigs. Kits come in 4, 6, 8, 12, 16, 24, 32 and 40 lights.
What does the Wireless Switch Panel do?
It runs up to 6 accessories from one panel, with no holes drilled in the dash.
Are FCKLightBars RGB rock lights waterproof?
Yes. The High-Intensity RGB Rock Lights are IP69 waterproof with a shockproof aluminum housing, and the harness uses waterproof connectors.
Do FCKLightBars lights come with a warranty?
Yes. Everything FCKLightBars sells carries a lifetime warranty.
How it’s installed
- Spread the 24 rock lights across the wheel wells, frame rails and underbody for even coverage.
- Each kit includes the harness with waterproof connectors, gaskets and mounting hardware.
- Use rock light extensions for the longer runs on a tall, wide truck.
- The Wireless Switch Panel runs up to 6 accessories with no holes drilled in the dash.
- Set rock light colors from the Bluetooth app (iPhone or Android).
