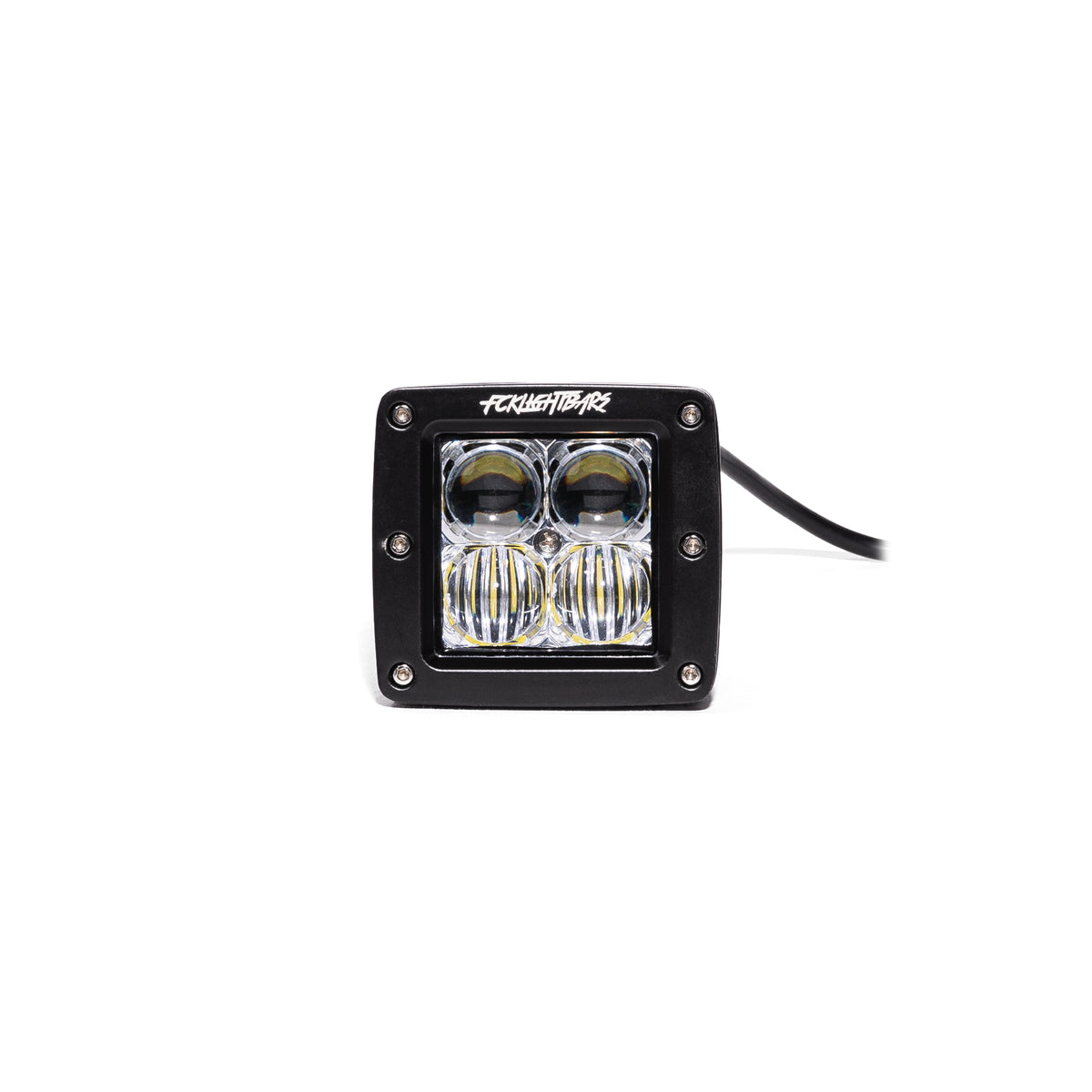

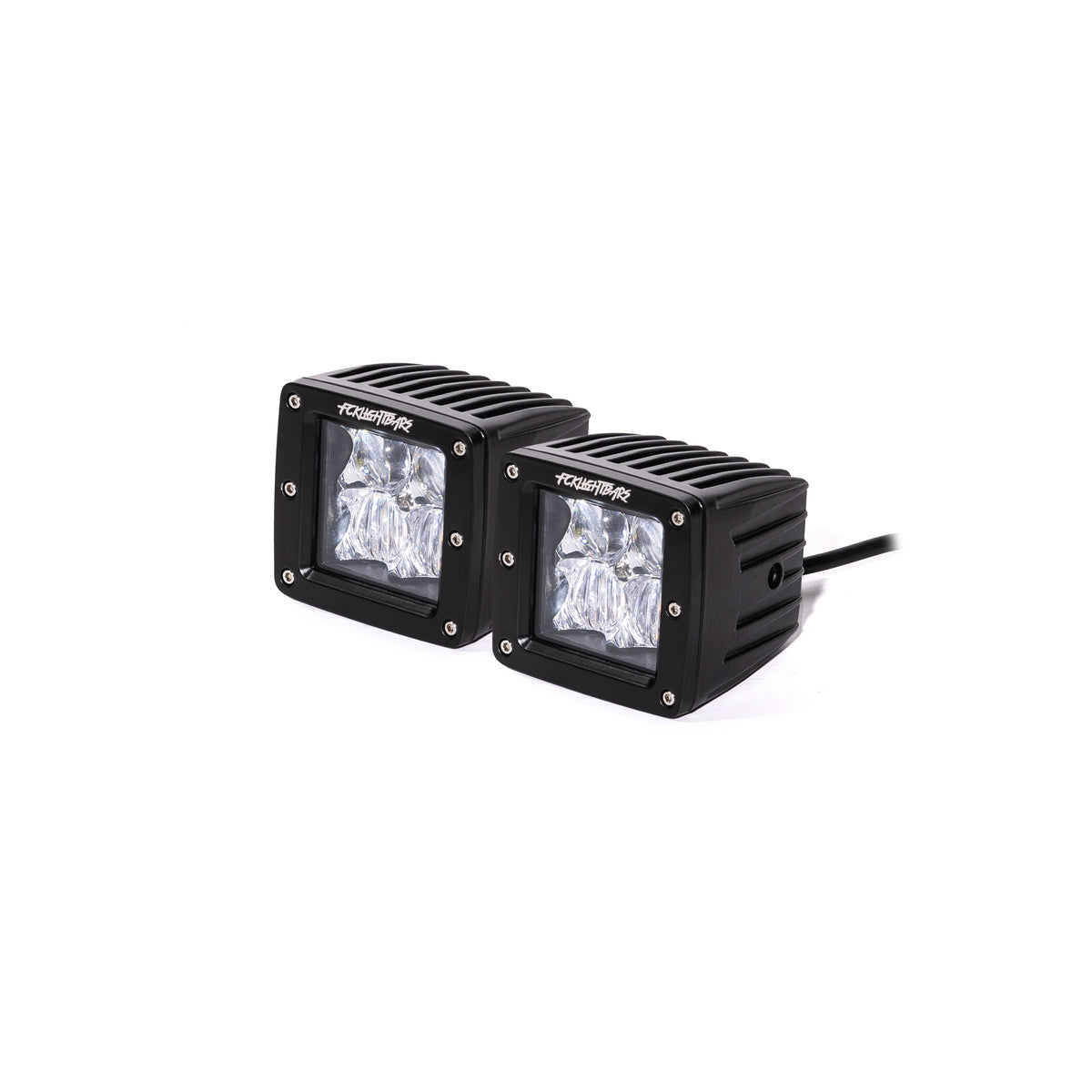

P-4 High-Output LED Pod – 3" Cube with OSRAM LEDs

The Sharpest 3-Inch Cube We Make

The P-4 tops our P-Series with premium OSRAM LED chips behind a 4D reflector/projector lens for noticeably tighter, farther-reaching projection than a standard cube pod. At 2,500 lumens from a 20W draw, it's an efficient, hard-hitting choice for ditch lights, fog lights, and bumper mounting.

Built Like Every FCK Pod

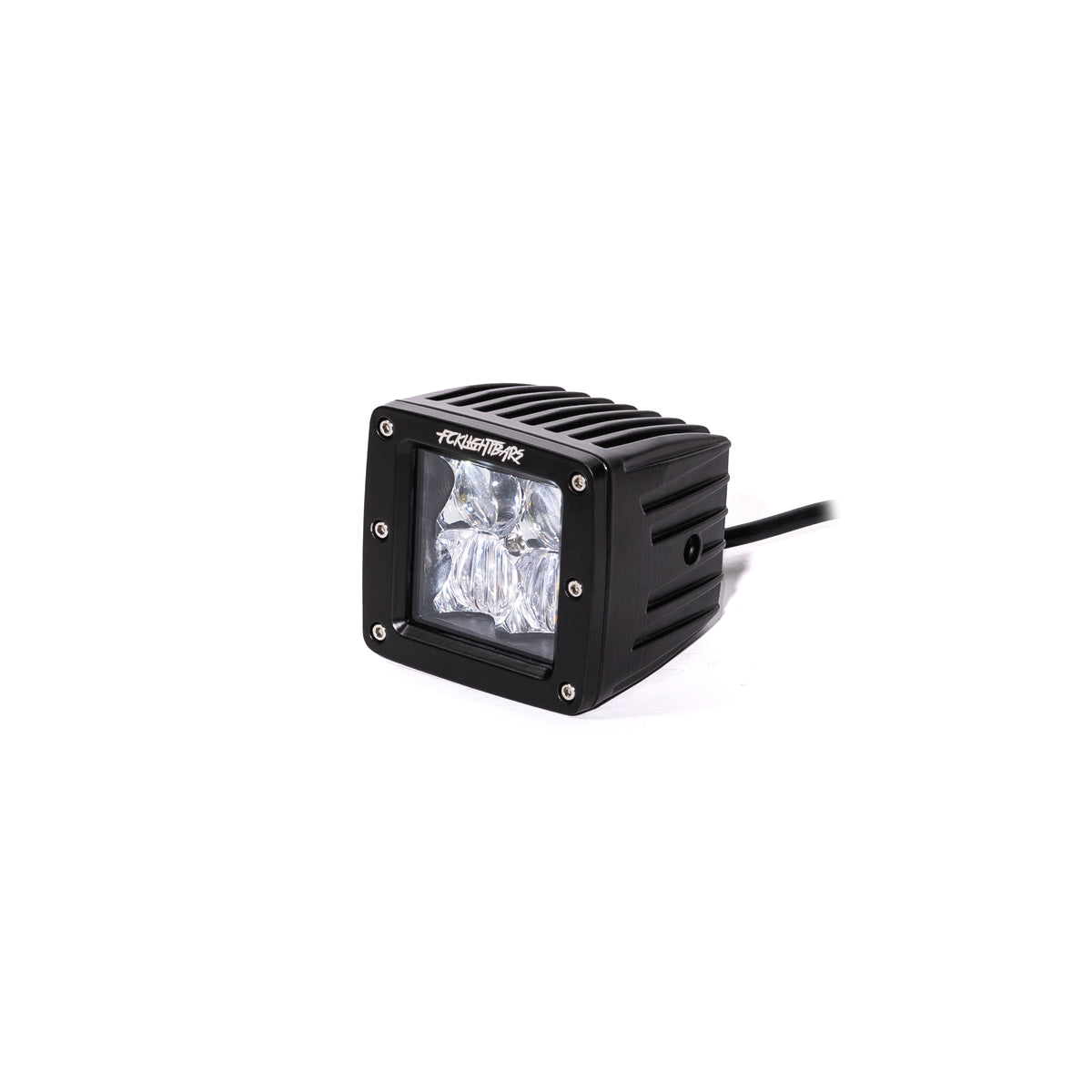

Die-cast aluminum housing, epoxy-encapsulated electronics, polycarbonate lens, and a stainless steel bracket with all mounting hardware included. IP68 sealed, reverse-polarity protected, and rated from -40°C to +60°C — engineered and assembled in the USA.

Pick Your Setup

• Beam pattern: spot or flood — select at checkout

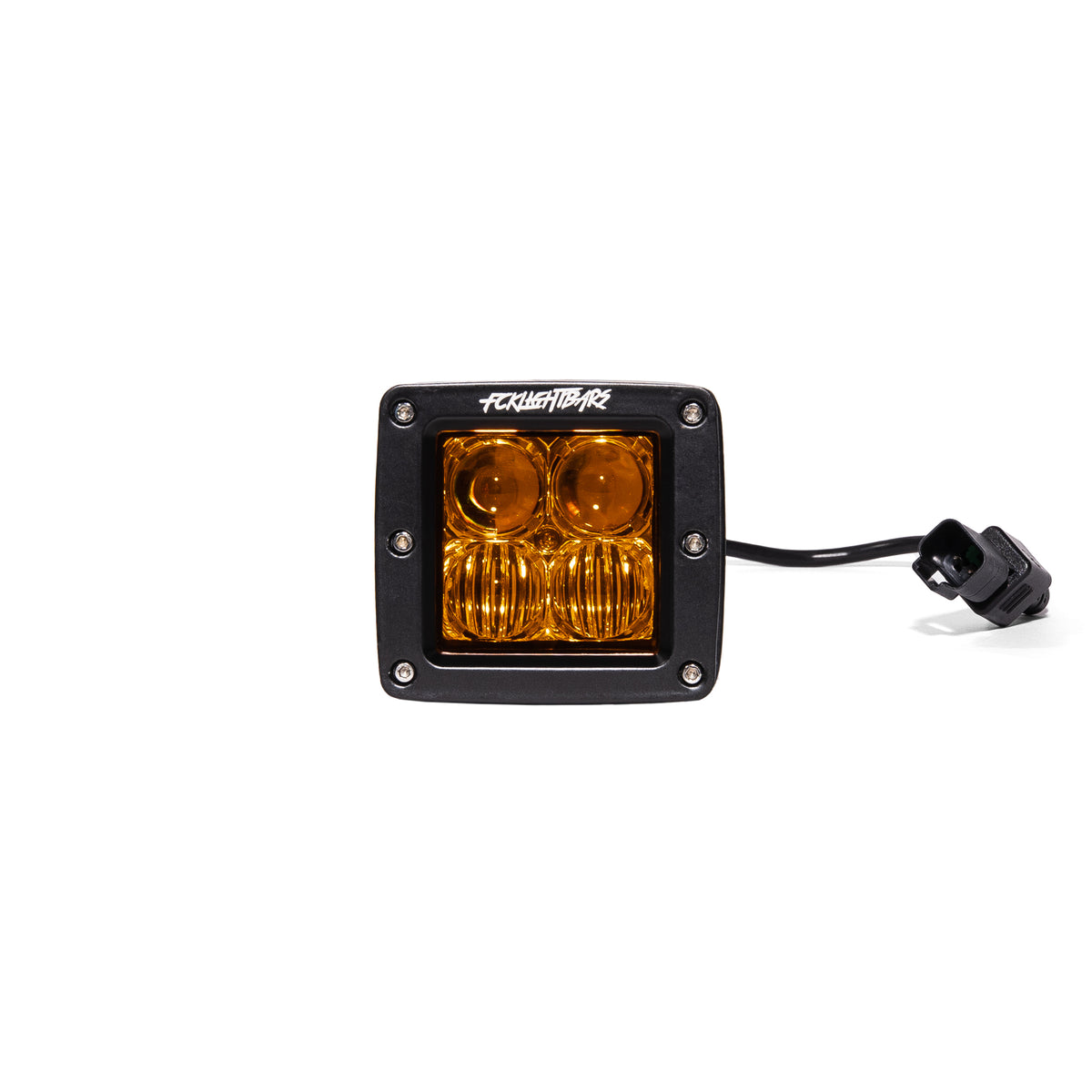

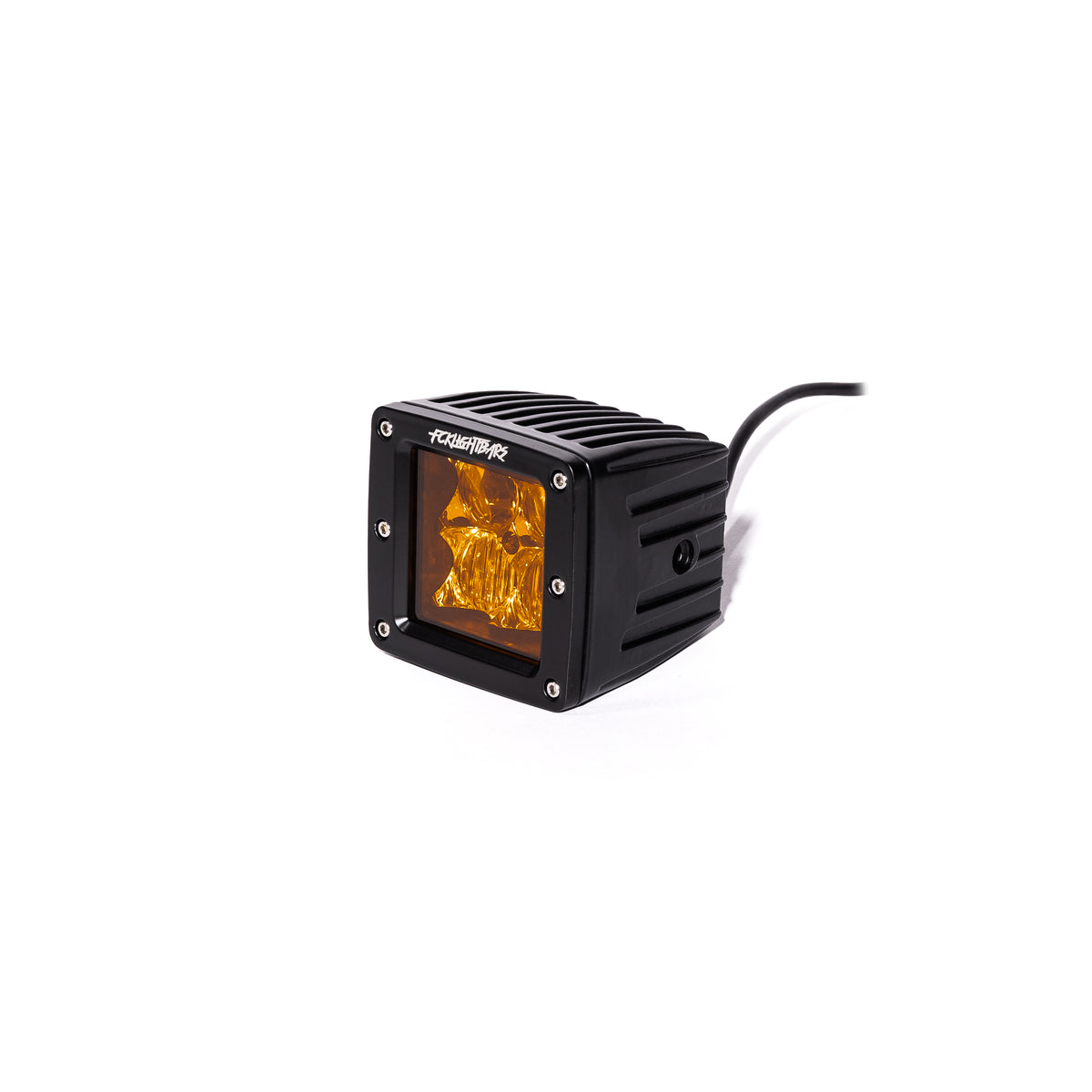

• Lens color: white or amber — select at checkout

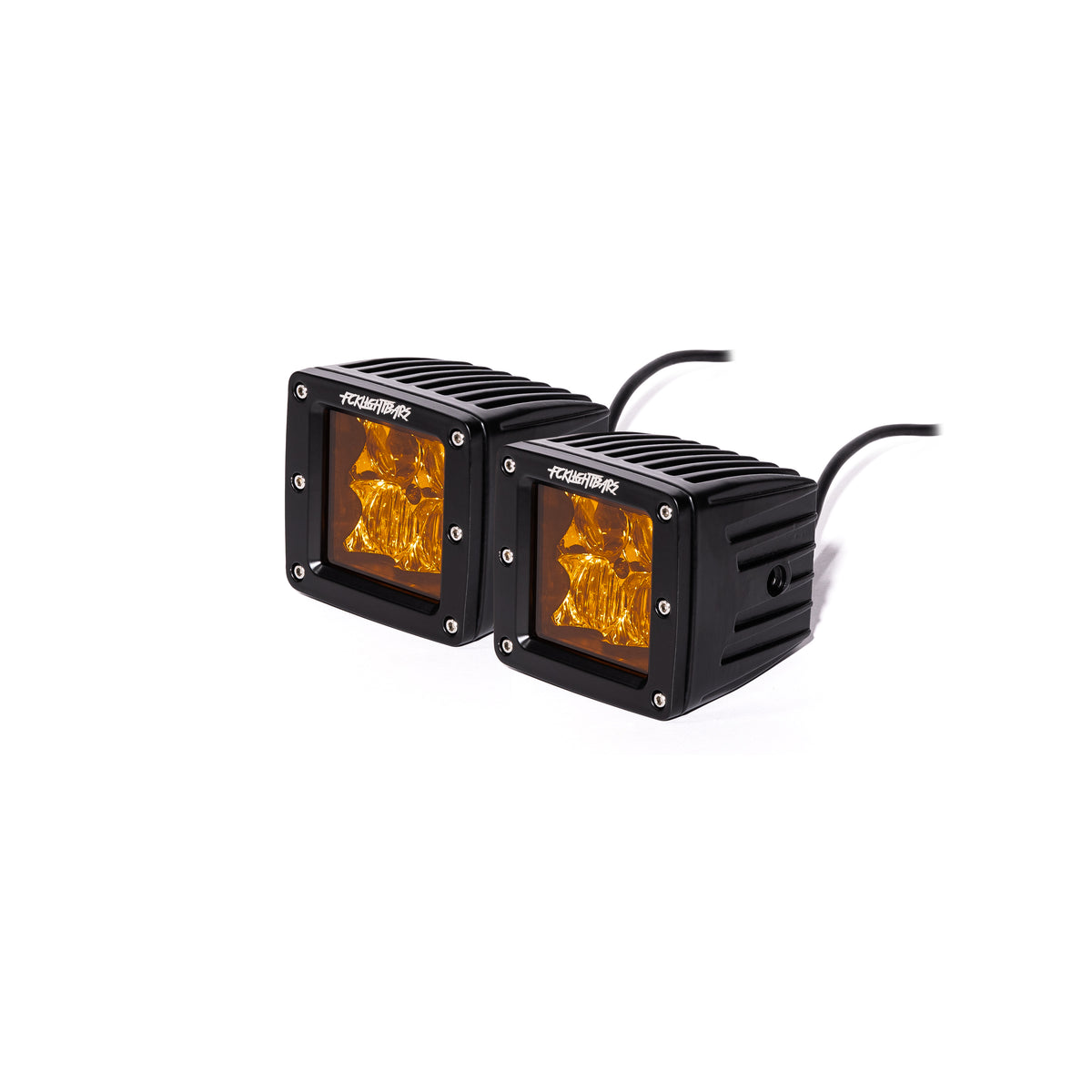

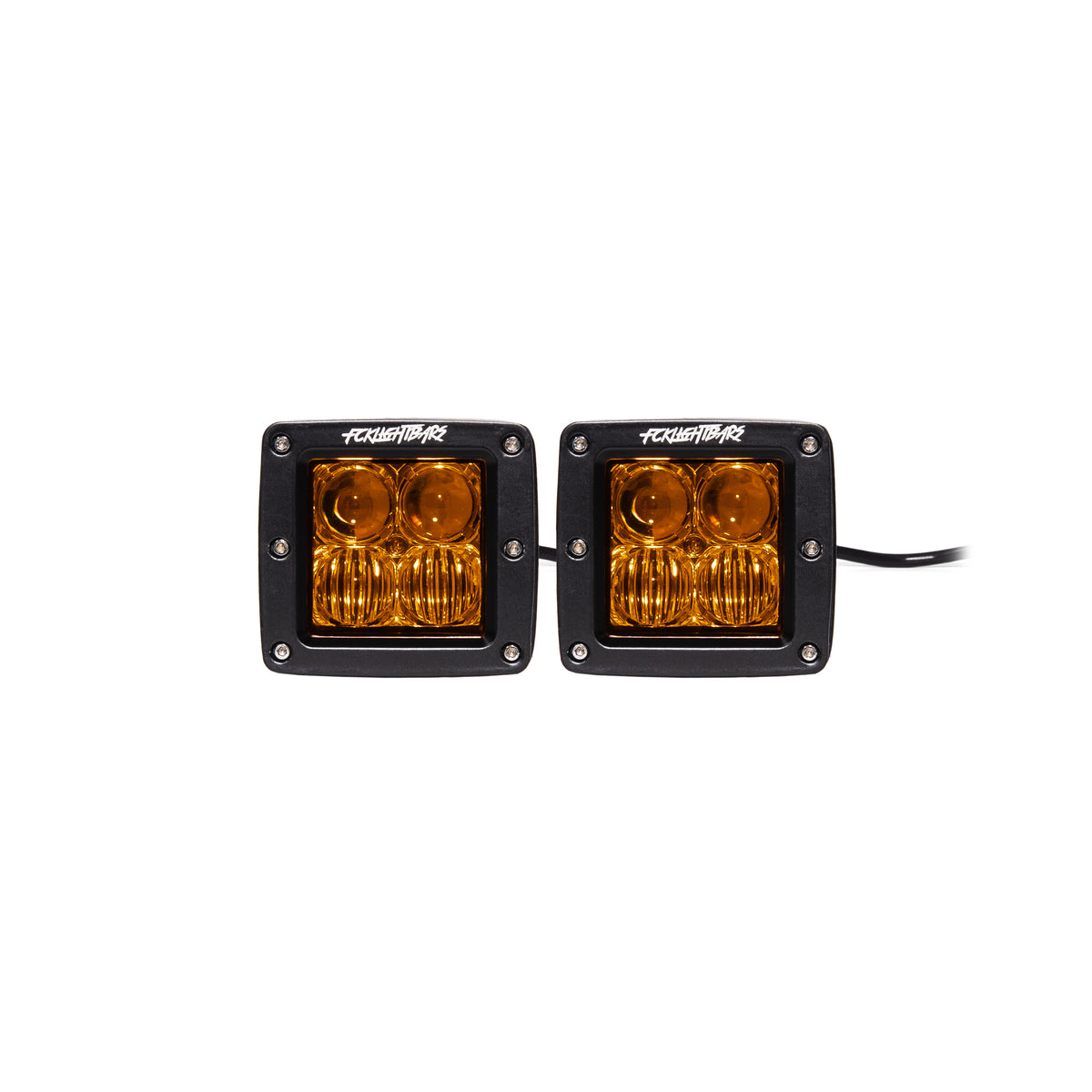

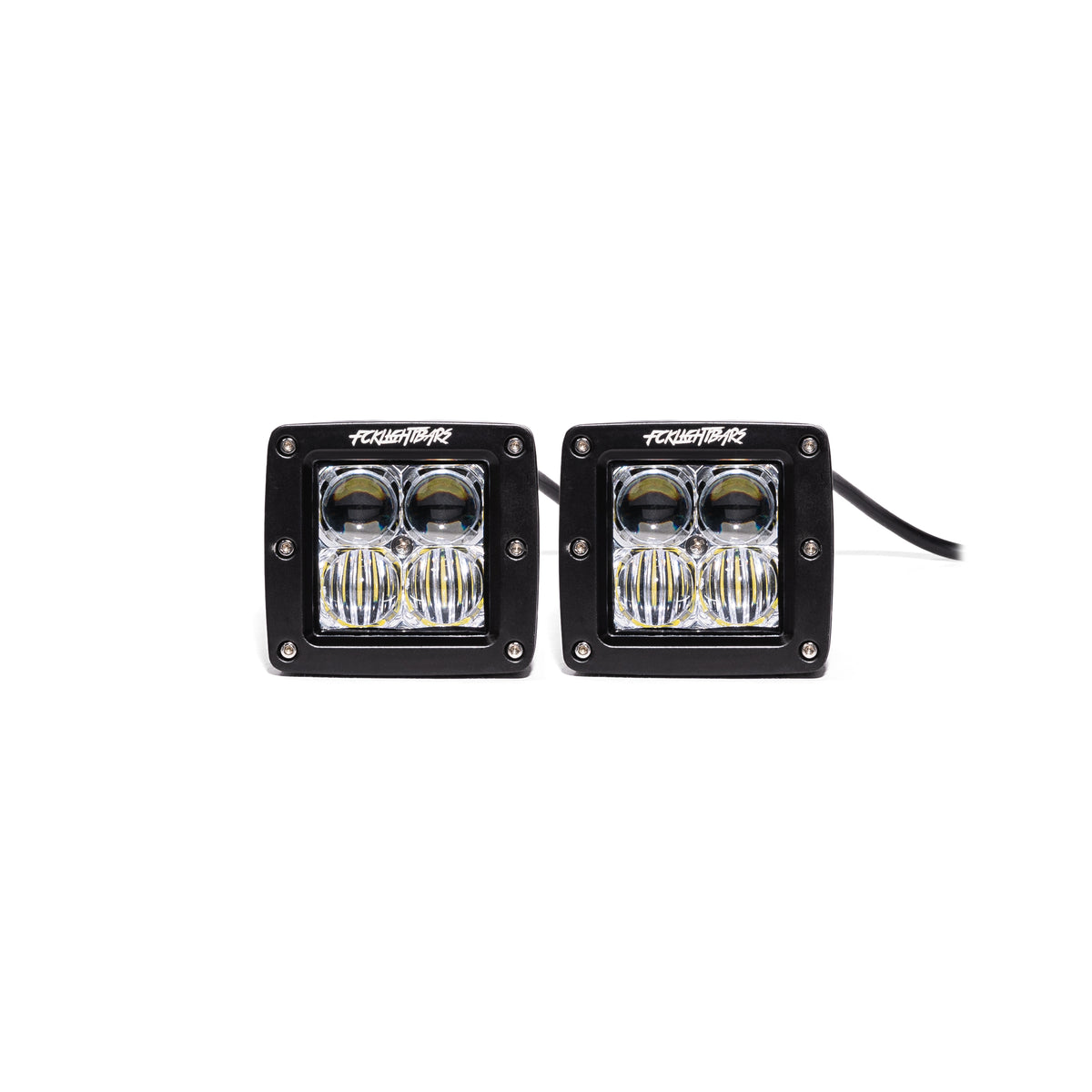

Pods are sold individually. Running a pair? The Dual Connection Harness wires both on one switch.

Specifications

• LED: OSRAM chips
• Lens: 4D reflector/projector, PMMA polycarbonate
• Output: 2,500 lumens
• Power: 20W (1.34A @ 12V / 0.67A @ 24V)
• Color temperature: 6500K
• Size: ~3" x 3" x 3"
• Housing: die-cast aluminum, IP68, reverse-polarity protected
• Operating temp: -40°C to +60°C

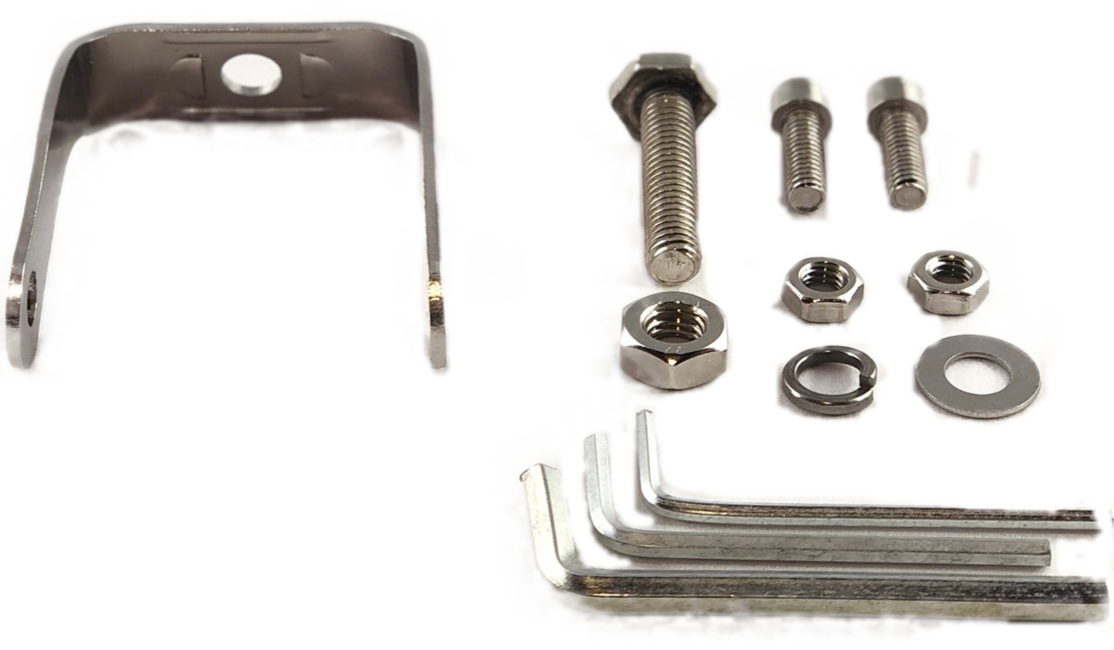

• Mounting: stainless steel bracket, hardware included
• Engineered and assembled in the USA

P-4 FAQ

Spot or flood — which should I get?

Spot throws a tight beam far down the trail; flood spreads light wide and close. Ditch lights usually run flood; forward bumper pods usually run spot. Many builds mix one of each per side.

When should I pick the amber lens?

Amber cuts through fog, snow, and dust with less glare-back. If your pod's job is bad-weather visibility, go amber.

How does the P-4 compare to the P-3?

The P-3 uses a 30W CREE with a standard reflector; the P-4's OSRAM chips and 4D optic project farther on less power. If you want the best beam in the P-Series, this is it.

See the whole family in our LED pod collection. Questions? Call us at (833) 325-3250.
